Description
BODY: Carbon steel, Stainless steel, Low temperature carbon steel, Duplex, Special Alloys,… Other materials under request SOFT SEATS : PTFE, RPTFE, PEEK, DEVLON, NYLON,… Other materials under request METAL SEAT:Tungsten Carbide(TC), Stellited , Ni60…Other materials under request. TRIM: A105+EP,304,316, 410, MONEL,… Other materials under request
PRODUCT RANGE
Class 150 from ½” to 10”
Class 300 from ½” to 8”
Class 600 from 1/2″ to 4″
MATERIALS
BODY: Carbon steel, Stainless steel, Low temperature carbon steel, Duplex, Special Alloys,… Other materials under request
SOFT SEATS : PTFE, RPTFE, PEEK, DEVLON, NYLON,… Other materials under request
METAL SEAT:Tungsten Carbide(TC), Stellited
, Ni60…Other materials under request.
TRIM: A105+EP,304,316, 410, MONEL,… Other materials under request
DESIGN STANDARDS
ASME Standards：
B1.20.1
Pipe Threads,General Purpose（Inch）
B16.10
Face-to-Face and End-to-End Dimensions of Valves
B16.25
Buttwelding Ends
B16.11
Forged Fittings, Socket-Welding and Threaded
B16.5
Flanged Fittings and Pipe Flanges
B16.47
Large Diameter Steel Flanges
API Standards：
6D
Specifications for Pipeline valves
598
Valve Inspection and Testing
607
Fire test for soft-seated quarter-turn valves
6FA
Specification for Fire Test for Valves
MSS Standards：
SP-55
Quality Standard for Steel Castings for Valves,Flanges,and Fittings and Other Piping Components-Visual Method for Evaluation of Surface Irregularities
SP-54
Quality Standard for Steel Castings for Valves,Flanges,and Fittings and Other Piping Components-Radiographic Examination Method
SP-53
Quality Standard for Steel Castings for Valves,Flanges,and Fittings and Other Piping Components-Magnetic Particle Examination Method
DESIGN FEATURE

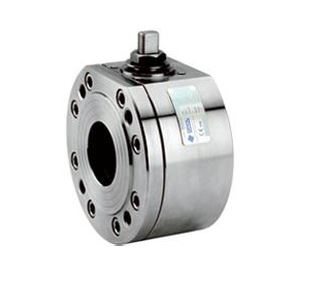

One piece body, full bore. Fire-Safe certified, floating ball, blow out proof stem, wafer connections.
Non-removable antistatic devices assure electric continuity between ball and body through the stem.
All wetted component materials and bolting meet NACE MR.01.75 latest edition as standard.Cavity pressure relief hole avoids overpressure in the cavity with the valve in open position.
Asbestos free.
APPLICATION
RefineryChemical
Petrochemical
Power plant
Gas
